Product Information:
| Brand | Innolux |

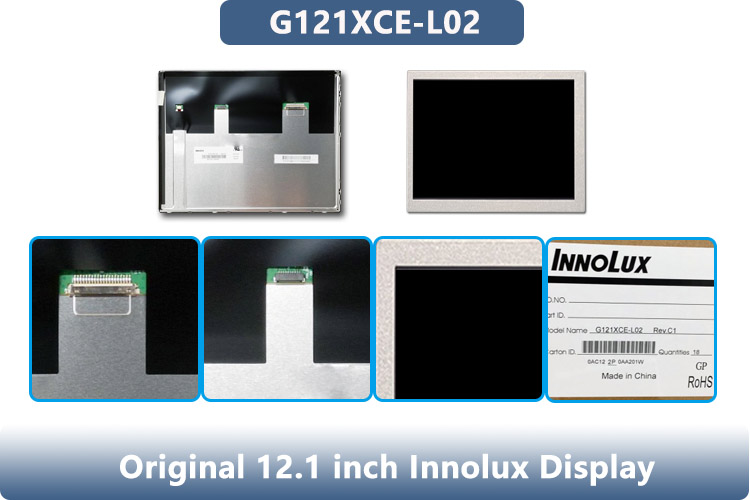

| Model P/N | G121XCE-L02 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Dim. | 260.5(W)×204(H)×8.9(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Support Color | 262K/16.7M 72% NTSC |
| Light Source | WLED , 30K hours , With LED Driver |
| Weight | 490/510g (Typ./Max.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
Features:

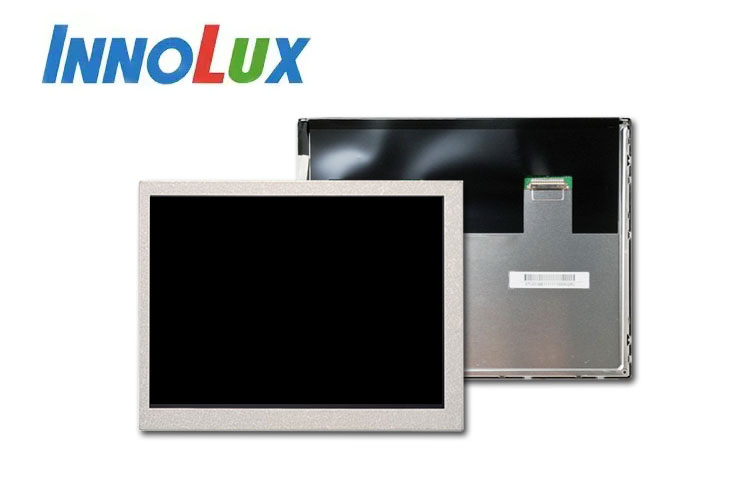

- Product Name: 12.1 inch INNOLUX LCD Display
- Smart Medical application
- Lcd Display for Military screen
- Automotive Application
One of the key features of this military LCD display is its LED lifetime. With a lifespan of 30,000 hours, this display is designed to last for years of continuous use, making it a reliable choice for industrial applications.
The interface of this industrial TFT LCD is LVDS 20, which provides high-speed data transmission and ensures reliable performance. This makes it ideal for use in applications that require fast and accurate data transfer.
In addition to its impressive operating capabilities, this military LCD display is also designed to withstand extreme storage temperatures. With a storage temperature range of -40°C to 80°C, this display can be stored safely even in the harshest environments.
With a resolution of 1024*768, the INNOLUX LCD Display delivers clear and detailed images, making it ideal for use in a wide range of industrial applications. Whether you need a high-quality display for military or commercial use, this industrial TFT LCD from INNOLUX is a reliable and durable choice.
Applications:
This Innolux LCD display module can be used in various product application occasions and scenarios, including:
- Industrial control systems: The G121ICE-L02 module can be used in industrial control systems, such as manufacturing plants, to display critical data and information. Its high-quality display ensures that users can quickly and easily read the information, improving productivity and efficiency.
- Medical equipment: The module's certification to ANSI/AAMI ES60601-1-2 makes it ideal for use in medical equipment. It can display patient data and information, such as vital signs, making it easy for healthcare professionals to monitor and diagnose patients.
- Information kiosks: The clear and detailed display of the G121ICE-L02 module makes it ideal for use in information kiosks. It can display maps, directions, and other information, making it easier for users to navigate and find what they need.
- Retail displays: The module's high-quality display and long LED lifetime make it ideal for use in retail displays. It can display product information, prices, and promotions, attracting customers and increasing sales.
Support and Services:
Our technical support and services for the INNOLUX LCD Display product include:
- Online technical support through our website
- 24/7 technical support hotline
- On-site technical support and repair services
- Warranty service for defective products
- Customized design and integration services
- Product training and education services for customers
Our team of experienced technicians and engineers are dedicated to ensuring the smooth operation and performance of your INNOLUX LCD Display product. Contact us for any technical support or service needs.
Packing and Shipping:
Product Packaging:
- INNOLUX LCD Display
- User manual
- HDMI cable
- Power adapter
- Remote control (optional)
