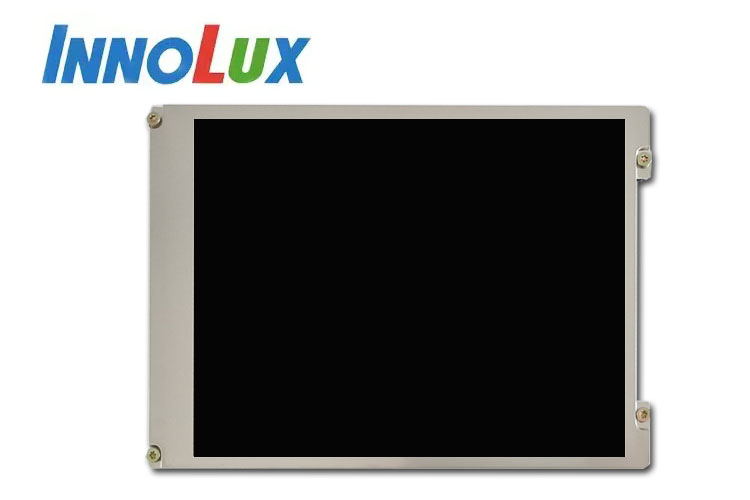

Product Description:
| Innolux G121ACE-LH2 Mechanical Details |
| Pixel Features | Pixel Format | 800(RGB)*600, SVGA | Dot Pitch | 0.1025*0.3075mm (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075*0.3075mm (H*V) [82PPI] |
| Mechanical Size : | Display Area (mm) | 246(H) *184.5(V) | Bezel Dim. (mm) | 249(H) * 187.5(V) |
| Outline Dim. (mm) | 260.5(H) * 204(V) | Outline Depth (mm) | 8.4±0.5 |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Other Features : | Weight | 470/490g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Innolux G121ACE-LH2 Optical Details |
| Basic Information : | Brightness | 600 cd/m²(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) ms |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 8-bit) |
| Color Temperature | 6485K | Uniformity | 1.25/1.43(Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 74% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Features:
- Product Name: INNOLUX LCD Display
- High Brightness: 600 nits
- Ips Lcd
- Long LED Lifetime (hrs): 50K
- Wide Temperature: -30℃～80℃
- Interface: LVDS 30
The INNOLUX LCD Display is a high-quality TFT LCD panel that is perfect for use in a variety of applications. With its IPS viewing direction, wide viewing angle, high resolution, and easy-to-use interface, it is a versatile and reliable option for anyone in need of a high-quality display. Whether you're working in the automotive industry, the industrial sector, or any other field that requires a high-quality display, the INNOLUX LCD Display is a great choice.
Applications:
This TFT LCD panel is highly versatile, making it suitable for various product application occasions and scenarios. It is ideal for medical equipment, POS systems, industrial control, and automation systems, among others. It can also be used in outdoor displays, gaming machines, and digital signage.
.
Support and Services:
Our INNOLUX LCD Display product comes with comprehensive technical support and services to ensure that you get the most out of your display. Our team of experts is available to assist you with any technical issues you may encounter, including troubleshooting, installation, and maintenance. We also offer training sessions to ensure that you are fully familiar with the features and capabilities of your display.
In addition to our technical support services, we also offer a range of value-added services to help you optimize your display performance. These include customization services to tailor your display to your specific needs, as well as design and engineering support to help you develop innovative solutions that meet your unique requirements.
Our commitment to customer service is second to none, and we work tirelessly to ensure that you are completely satisfied with your INNOLUX LCD Display product. Whether you need technical assistance, custom solutions, or general support, our team is always here to help.
Packing and Shipping:
Product Packaging:
The INNOLUX LCD Display product will be securely packaged to ensure safe delivery. The display will be placed in a foam cushioning material to prevent any damage during transit. The packaging will also include a user manual and any necessary cables or accessories.
Shipping:
Once the order is placed, the INNOLUX LCD Display product will be shipped within 1-2 business days. The shipping method will depend on the location and preference of the customer. We offer standard shipping, express shipping, and overnight shipping. Shipping costs will vary depending on the method selected and the destination of the package.
| Innolux G121ACE-LH2 Carton Details |
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 18 pcs / box | 10.9 Kgs | 465*362*314 mm |
